Description

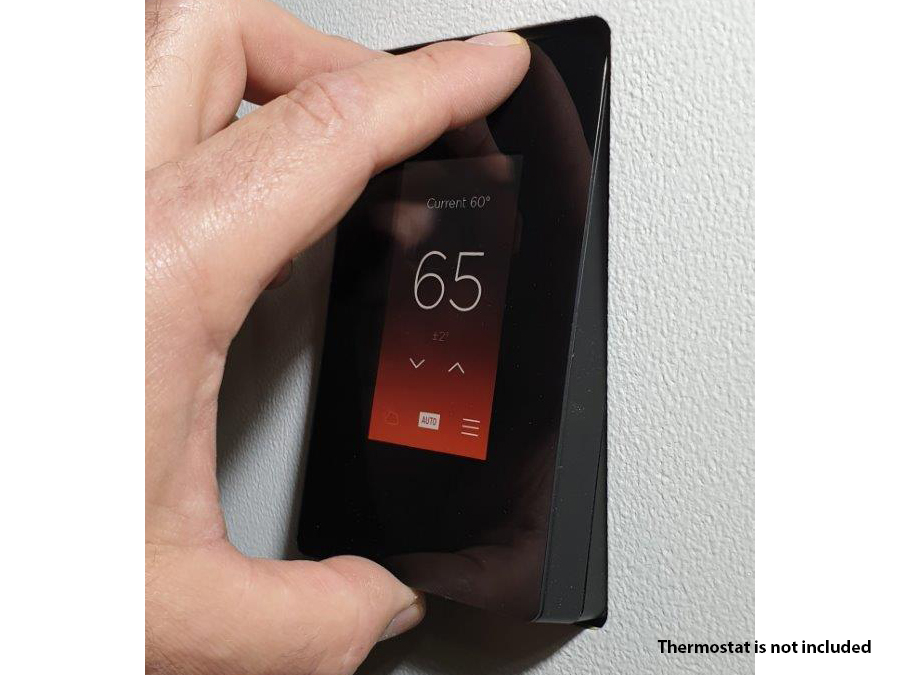

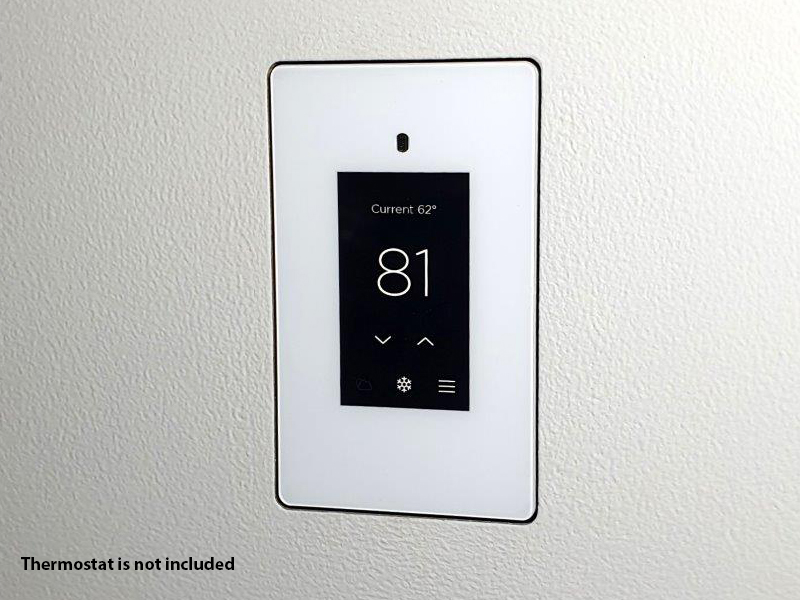

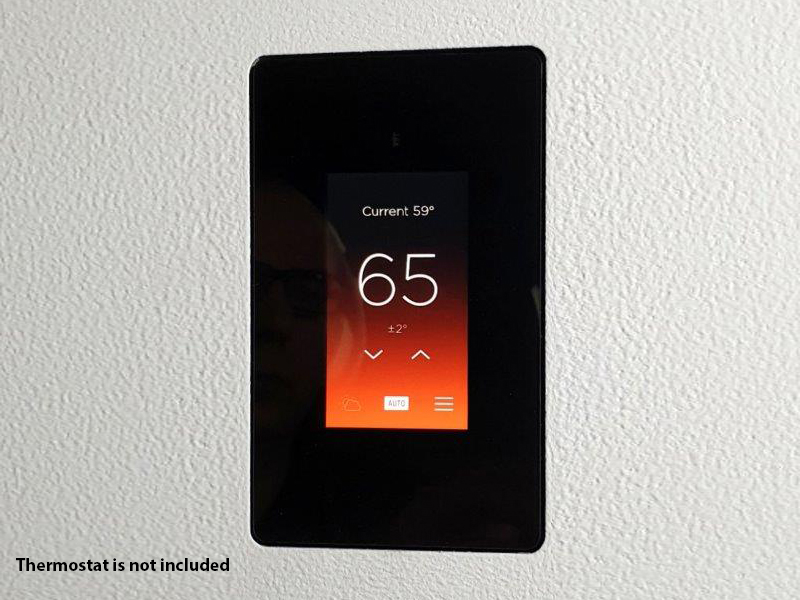

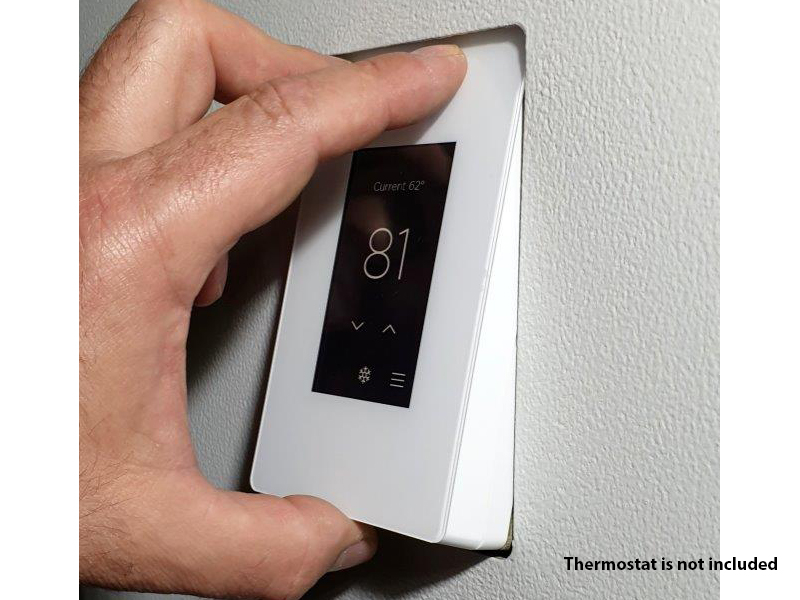

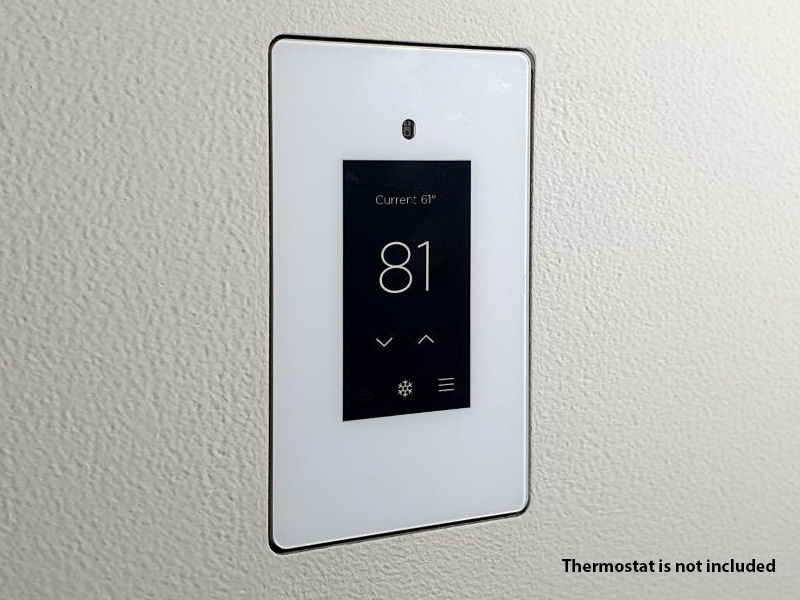

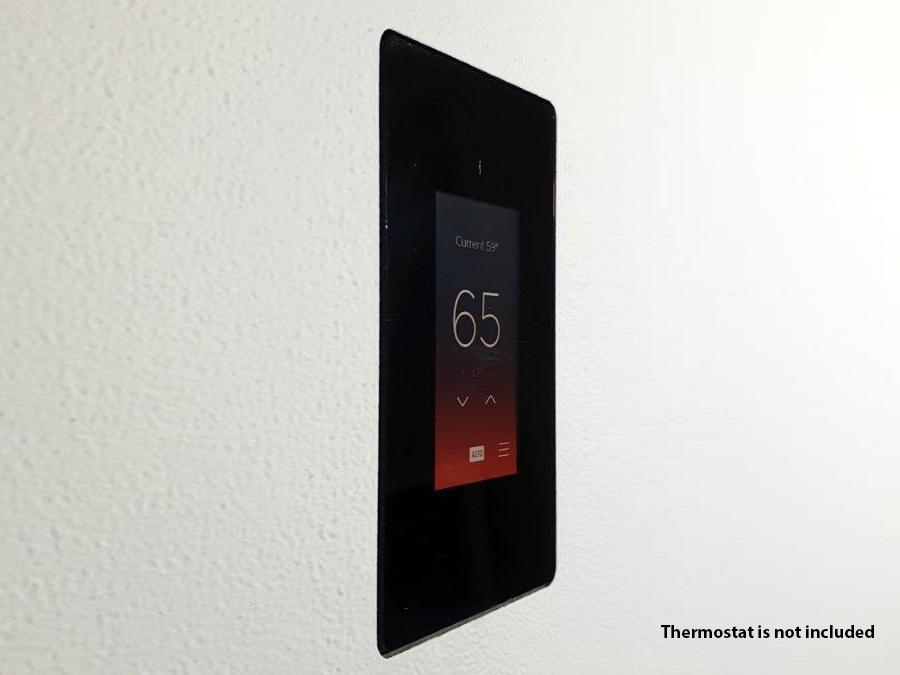

The Wall-Smart new construction in-wall adapter provides a secure flush mounting solution for in-wall thermostats. It is designed to integrate the thermostat body into 1/2 inch drywall while keeping the device accessible for operation. The adapter ships unpainted so it can be finished as part of the surrounding wall for a seamless appearance.
Key features include a paintable moisture-resistant MDF construction and a low-profile design that holds the thermostat flush with the wall. The adapter allows easy insertion and removal of the thermostat for service or inspection. A remote temperature sensor is required for proper thermostat operation and should be connected independently.
Technical details include an overall footprint sized at 212mm x 162mm and a depth of 33.2mm to fit common thermostat enclosures. The adapter has no power supply and functions as a mechanical mounting solution only. Weight is light at approximately 1.65 lbs, and the material is compliant moisture-resistant MDF in accordance with TSCA Title VI.
Compatibility is focused on Savant-style thermostat installations and it is intended to accept the CLI-W200 thermostat profile. For concrete or block wall installations a dedicated concrete box P/N 10-01-072 is specified and installed per instruction 10-04-00103-INS. Installation procedures follow standard drywall construction practices and reference installation instruction 10-04-00101-INS.
This adapter is ideal for new construction projects where a flush, paintable thermostat installation is desired. It suits residential and commercial interiors where a clean aesthetic and integrated finish are priorities. The adapter supports common HVAC control layouts when paired with the required remote temperature sensor.
Installation is straightforward for professionals familiar with drywall framing and device mounting. The product is supplied unpainted so finishing trades can paint and texture the adapter to match the wall. The moisture-resistant MDF construction provides a stable substrate for paint and wall finishes while maintaining the flush profile of the installed thermostat.
