Description

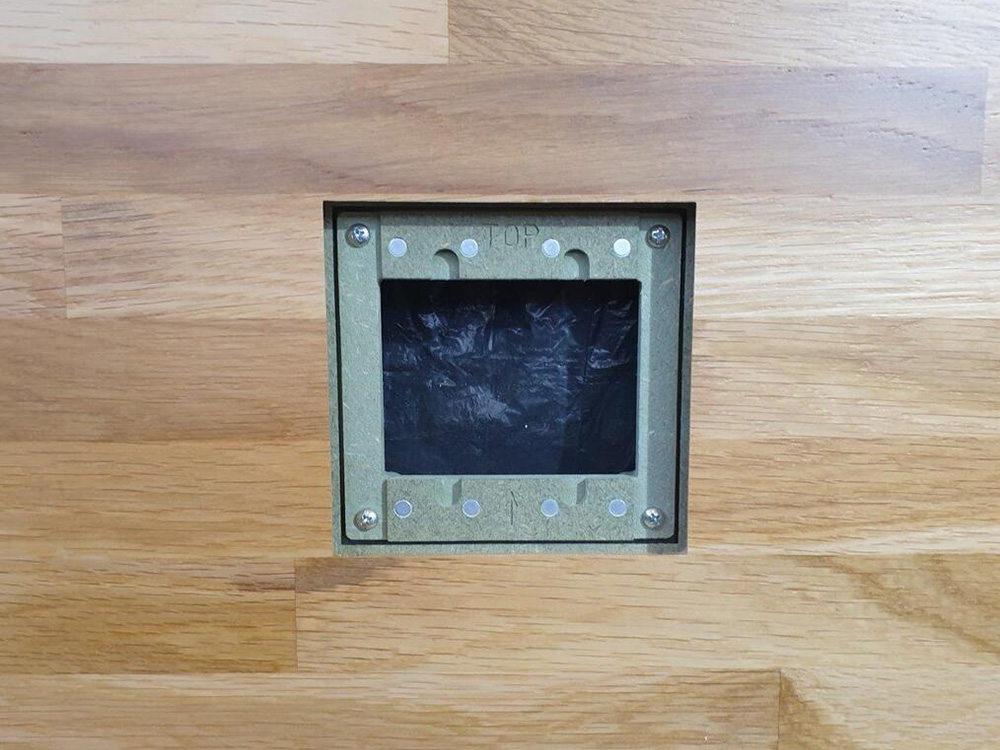

The Solid Surface Mount Adapter is a low voltage in-wall flush installation adapter designed for solid board walls. It provides a secure mounting point for compatible faceplates and Horizon low voltage devices. This adapter is intended for low voltage use only and is not a powered device.

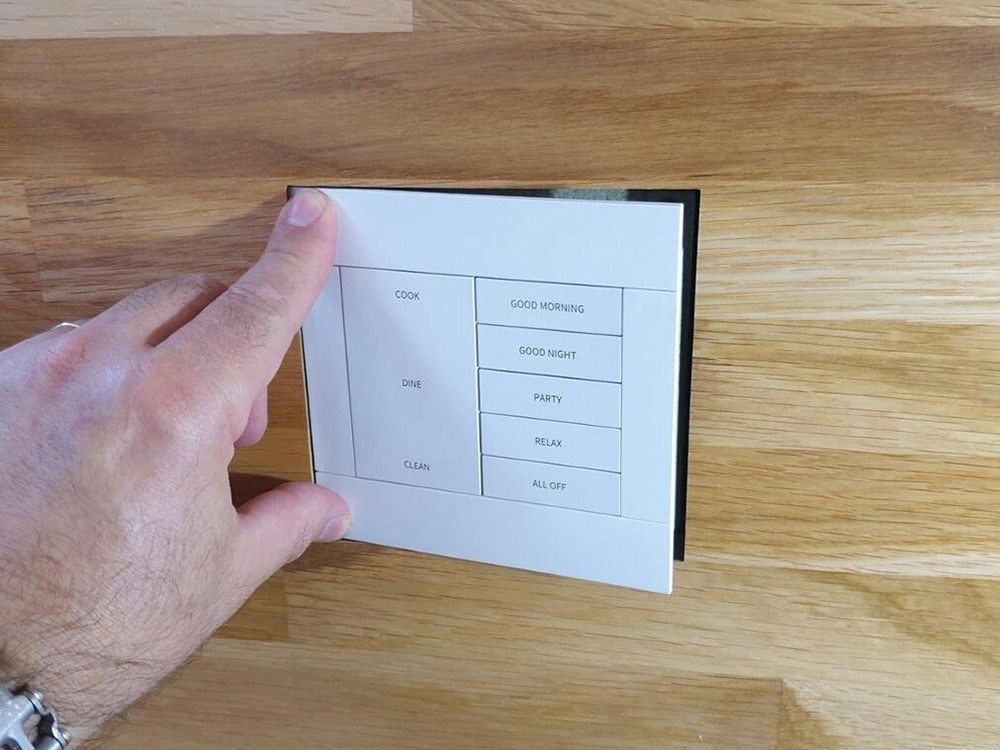

The adapter features an integrated depth calibration mechanism and a removable spacer to accommodate a range of wall board thicknesses. It supports easy insertion and removal of the faceplate and devices to simplify maintenance. The design keeps the faceplate flush with the finished wall surface for a clean installation.
Key technical details include the external dimensions 156.8mm W x 152.8mm H x 40.3mm D and a lightweight build at 0.42Kg. The unit is constructed from moisture resistant MDF and requires no power supply as it is a manual adapter. These specifications support a reliable, stable mount in typical AV install environments.
Connectivity and compatibility are focused on low voltage Horizon devices and compatible faceplates. The adapter is designed to accept the specific faceplate geometry used by the matching low voltage faceplate system. Faceplate and low voltage devices are not included and must be sourced separately to complete the installation.
Typical applications include AV wall installations in corporate, education, and residential settings where a flush low voltage faceplate is required. The adapter is suitable for retrofit or new construction where solid board wall material is present. Installers will find it appropriate for systems that require regular access for service or device swaps.
Installation is straightforward using the included spacer or a routing template as a spacer to calibrate depth. The adapter permits maintenance access while maintaining a flush finished appearance and includes features to make insertion and removal of devices simple. Its moisture resistant MDF construction provides durability for indoor AV installations.
