Description

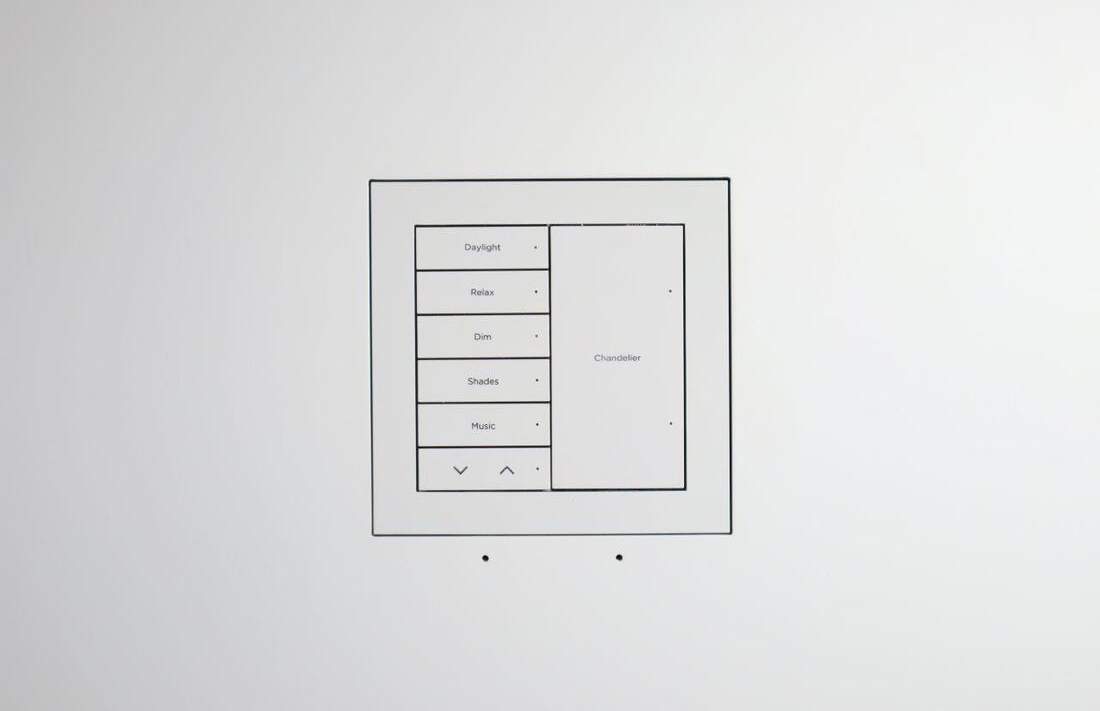

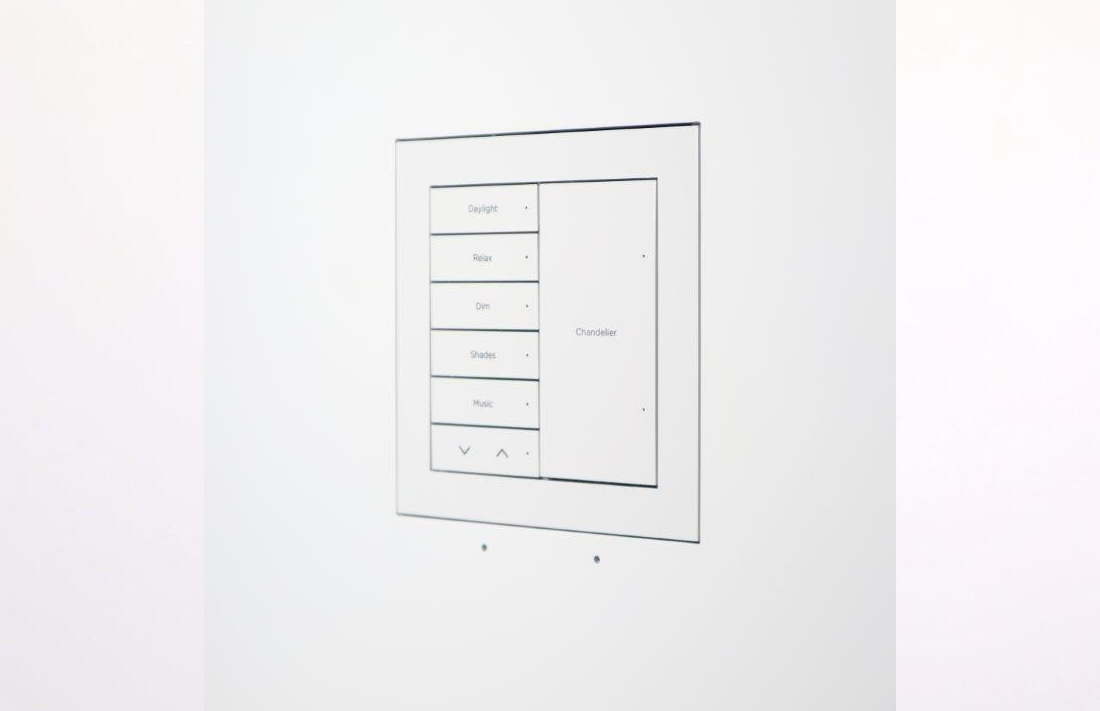

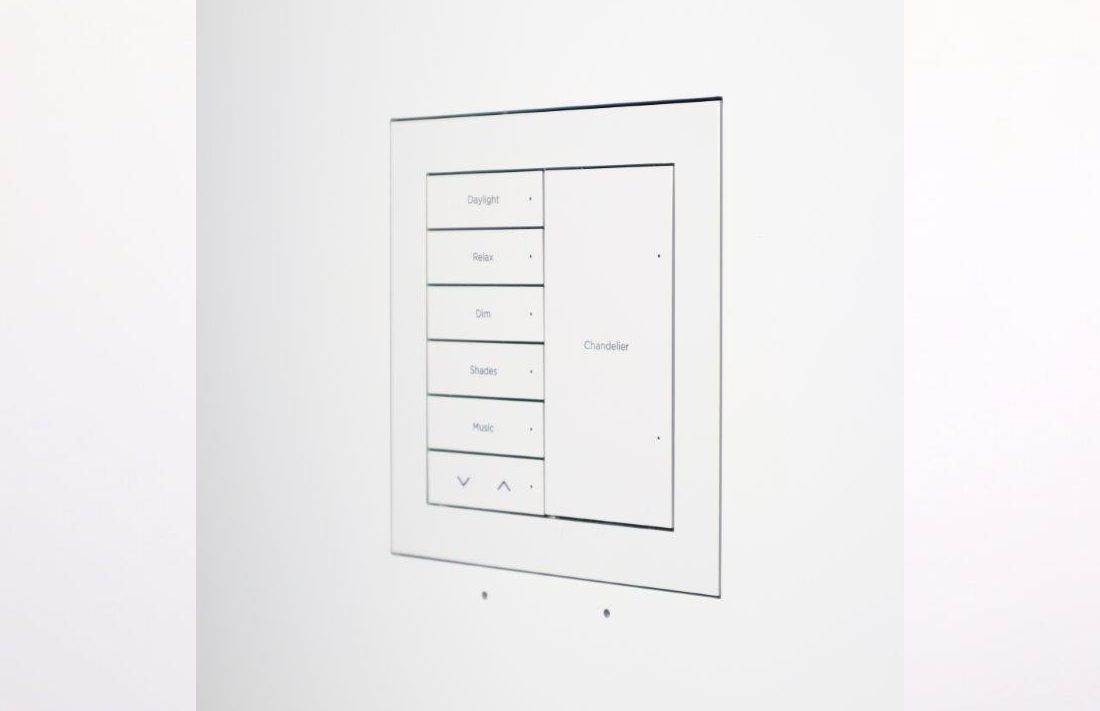

The in-wall flush mount adapter is designed to accept C4 LUX 2-gang faceplates and compatible C4-L-XX devices. It provides a flush, low-profile installation that integrates with finished drywall surfaces. The adapter includes a depth calibration mechanism to ensure correct alignment and operation of installed devices.

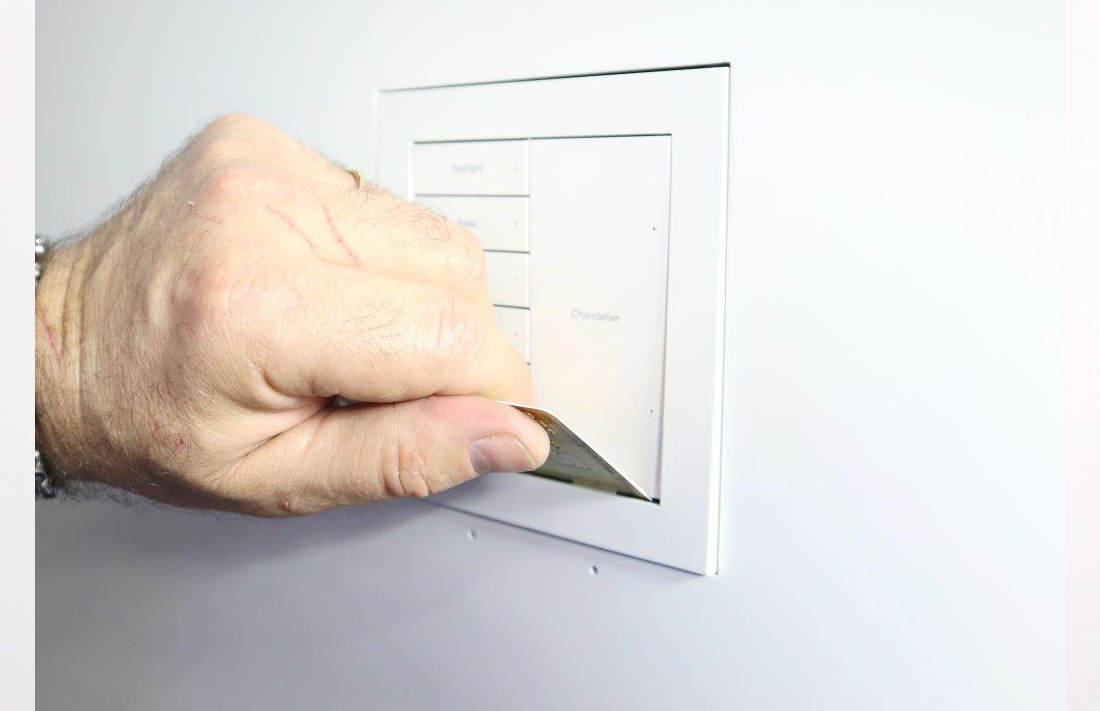

Key features include a paintable front surface to match wall finishes, a depth calibration mechanism for precise device alignment, and a flush mount profile that keeps the faceplate even with the wall. The adapter is supplied unpainted so it can be finished as part of the wall after installation. It permits easy insertion and removal of C4 LUX 2-gang devices while maintaining a secure mount.
Technical details include overall footprint and depth designed to fit standard electrical openings and 1/2″ drywall. The adapter has a height of 203.2mm and overall dimensions of 214.26mm by 203.2mm by 44mm. The unit weighs 0.3Kg and is constructed from moisture resistant MDF compliant with TSCA Title VI.
Compatibility is focused on the C4 LUX 2-gang faceplate family and C4-L-XX devices; those components are not included with the adapter. The adapter is manual and requires no power supply or electronics to operate. It is intended to integrate seamlessly with C4 faceplate hardware and the targeted device family.
Typical applications include residential and commercial AV installations, retrofit projects where a flush finished appearance is required, and new-construction drywall installations. The adapter supports coordinated finishes since it can be painted to match texture and color. It is suitable wherever concealed or low-profile AV device mounting is required.
Installation is straightforward and follows common drywall construction practices; installers should reference the manufacturer installation instruction 10-04-00101-INS prior to mounting. The adapter is designed for 1/2″ drywall and includes a depth calibration mechanism to simplify final alignment. Build quality uses moisture resistant MDF for dimensional stability in typical interior environments.
